  • one of the biggest challenges in computer graphics has been able to create a photo real digital human face.

  • And one of the reasons that so difficult is that unlike aliens and dinosaurs, we look at human faces every day.

  • They're very important to how we communicate with each other.

  • As a result, we're tuned into the subtle ist things that could possibly be wrong with a computer rendering in order to believe whether these things are realistic.

  • And what I'm going to do in the next five minutes is take you through a process where we tried to create a reasonably photo, realistic, computer generated face using some computer graphics technology we've developed and also some collaborators at a company called Image Metrics.

  • We're gonna try to do a photo real face of an actress named Emily O'Brian, who's right there.

  • And that's actually a completely computer generated rendering of her face.

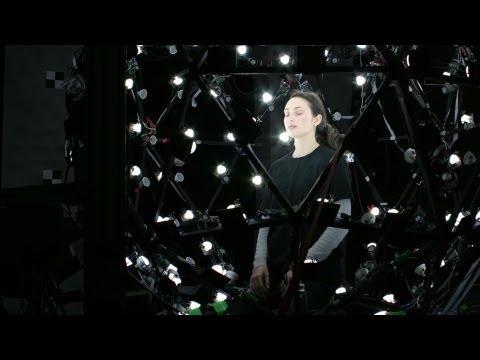

  • And by the end of the talk, we're going to see it move the way that we did this is We tried to start with Emily herself, who was gracious enough to come to our laboratory in Marina del Rey and sit for a session in light Stage five.

  • This is a face scanning sphere with 156.

  • White led is all around that allow us to photograph her in a series of very controlled illumination conditions, and the lighting that we use these days looks something like this.

  • We shoot all of these photographs in about three seconds, and we basically capture enough information with video projector patterns that drape over the contours of her face and different principle directions of light from the light stage to figure out both the coarse scale and the fine scale detail of her face.

  • Resuming on this photograph right here, you can see it's a really nice photograph to have of her because she is lit from absolutely everywhere at the same time to get a nice image of her facial texture.

  • And in addition, we've actually used polarizer is on all the lights, just like polarized sunglasses can block the glare off of the road polarizes conglomerate shine off of the skin so we don't get all those speculum reflections to take this map.

  • Now, if we turn, the polarizer is around just a little bit, we can actually bring that speculum reflection of the skin back in, and you can see she looks kind of shiny and oily at this point.

  • And if you take the difference between these two images here, you can get an image lit from the entire sphere of light of just the shine off of Emily's skin.

  • I don't think any photograph like this had ever been taken before we had done this.

  • And this is very important light to capture, because this is the light that reflects off the first surface of the skin, doesn't get underneath the translucent layers of the skin and blur out.

  • As a result, It's a very good cue to the detailed shape of the skin pore structure and all of the fine wrinkles that all of us have the things that actually make us look like real humans.

  • So if we use information that comes off of the speculum reflection, we can go from a traditional face scan that might have the gross contours of the face and the basic shape and augment it with information that puts in all of that skin pore structure and fine wrinkles.

  • And even more importantly, since this is a photo metric process that only takes three seconds to capture.

  • We can shoot Emily in just part of an afternoon in many different facial poses and different facial expressions.

  • So here you can see her moving her eyes around, moving her mouth around, and these we're actually going to use to create a photo real digital character.

  • So if you take a look at these scans that we have of Emily, you can see that the human face does an enormous amount of amazing things.

  • As it goes into different facial expressions, you can see things not only the face shape changes, but all sorts of different skin buckling and skin wrinkling occurs.

  • You can see that the skin pore structure changes enormously from stretched skin pores to the regular skin texture.

  • You can see the furrows in the brow and how the micro structure changes.

  • There you can see muscles pulling down at flesh to bring her eyebrows down, her muscles bulging in her forehead.

  • When she winces like that.

  • In addition to this kind of high resolution geometry, since it's all captured with cameras, we get a great texture map to use for the face by looking at how the different color channels of the illumination, the red and the green and the blue diffuse the light differently.

  • We can come up with a way of shading the skin and the computer instead of looking like plaster.

  • Mannequin actually looks like it's made out of living human flesh.

  • And this is what we used to give to the company image metrics to create a rigged digital version of Emily.

  • We're just seeing the coarse scale geometry here, but they basically created a digital puppet of her where you can pull on these various strings, and it actually moves her face in ways that are completely consistent with the scans that we took.

  • In addition to the coarse scale geometry, they also use all of that detail to create a set of what are called displacement maps.

  • The animators.

  • Well, these are the displacement maps here, and you can see those different wrinkles actually show up as she animates.

  • So the next process was then to animate her.

  • We actually used one of her own performances to provide the source data.

  • So by analyzing this video with computer vision techniques, they were able to drive the facial rig with the computer generate performance.

  • So we're going to see now after this is a completely photo real digital face.

  • We can turn the volume up a little bit if that's available.

  • Midge Metrics is a marker lis performance driven animation company.

  • We specialize in high quality facial animation for video games and films.

  • Image Metrics is a mark Earless performance driven animation company.

  • Way specialize in high quality facial animation for video games and films.

  • So if you break that down into layers, here's that diffuse component we saw in the first slide.

  • Here's the speculator opponent animating and see all the wrinkles happening there, and there's the underlying wire frame mesh, and that's Emily herself.

  • Now where we going with this?

  • Here?

  • We've actually gone and will go on a little bit before.

  • Beyond Light Stage five.

  • This is Light Stage six, and we're looking at taking this technology and applying it to whole human bodies.

  • This is Bruce Lawmen, one of our researchers in the group, who graciously agreed to get captured running in the light stage.
